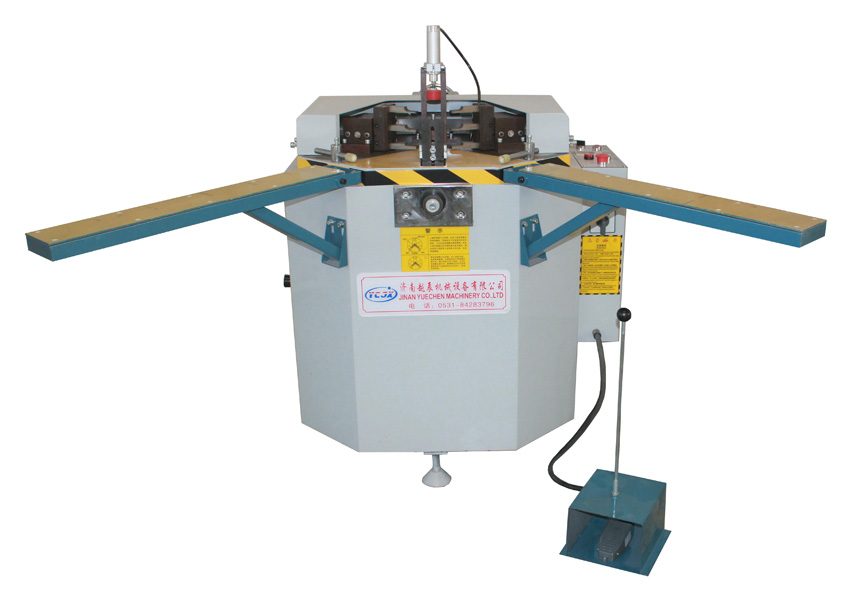

● Used for 90° corner combining.
● Adjustable corner combining tool that achieve multi-position corner combining.
● Inner locator can sit below the worktable, easy operation.
● Hydraulic system supplied large punching and riveting force.
● Left and right punching heads adopt hard synchronous feeding device, thus makes the connection more firmly.
● It has features of easy operation, reliable performance, advanced technique and convenient maintenance.
Power supply 380V 50Hz
Input power 1.5 Kw
Air pressure 0.4-0.6Mpa
Air consumption 0.2L/time
Hydraulic pressure 15 MPa
Oil capacity 20L
Profile width ≤120mm
Overall dimension 1300x1200x1300mm
