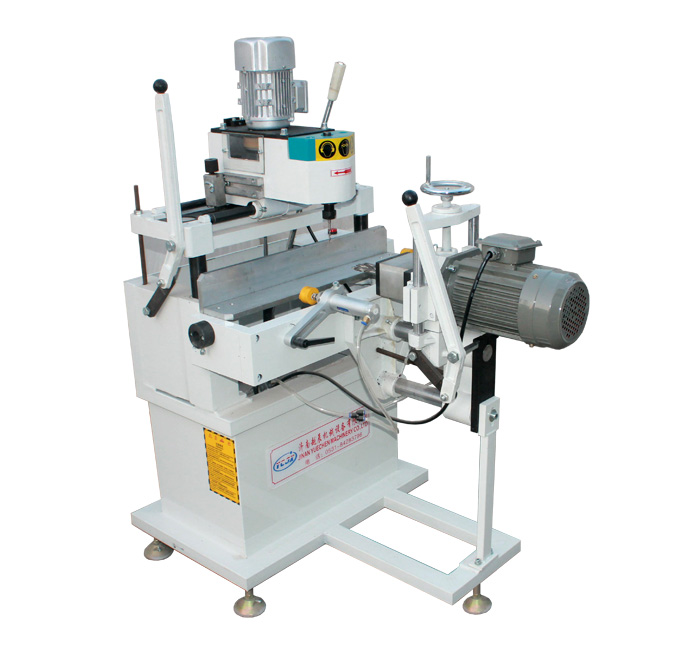

SZS-100 Lock Hole Processing Machine


Lock Hole Processing Machine
Product Details

● Machine is composed of three-hole drill and copy-routing mill.

● It process various kinds of holes,grooves and water-slots for PVC window and doors.

● The three-hole driller has the special twist drill which can drill the aluminum alloy profile and PVC profile with steel inlaid.

● Can processing different slots controlled by the pole.

Model SZS-100

Power supply 380V 50Hz

Input power 0.75+1.1kw

Air pressure 0.4~0.6MPa

Air consumption 30L/min

Rotation speed 12000r/min

Cutter diameter φ5mm φ8mm

Copy routing range 290×90mm

Overall dimension 980×1000×1300mm
