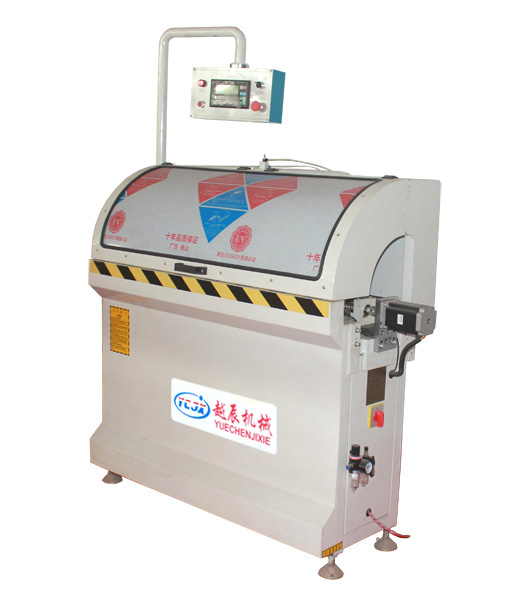

LJM-CNC-500 CNC Corner Connector Auto Cuting Saw

Clicks:

CNC Corner Connector Auto Cuting Saw
Product Details

● Used for cutting aluminum connectors.

● It controlled by ball screw and CNC system result high efficiency.

● Recording system record the number that already cut.

● Automatic feeding system, can cut over-lengthy profiles.

● Imported carbide saw blade gives accurate processing, high reliability.

● Clamping and feeding process adopt pneumatic control, has features of high automation, reliability and production efficiency.


Model:LJM-CNC-500

Power supply:380V 50Hz

Input power:2.2Kw

Air pressure:0.5~0.8MPa

Air consumption:120L/min

Motor rotation speed:2840r/min

Saw blade standard:Φ500×4.4×Φ30×Z120

Saw feeding speed:0~3m/min

Cutting height:120mm

Auto feeding length:3~400mm

Overall dimension:5600×1400×1300mm

Consulting: LJM-CNC-500 CNC Corner Connector Auto Cuting Saw
